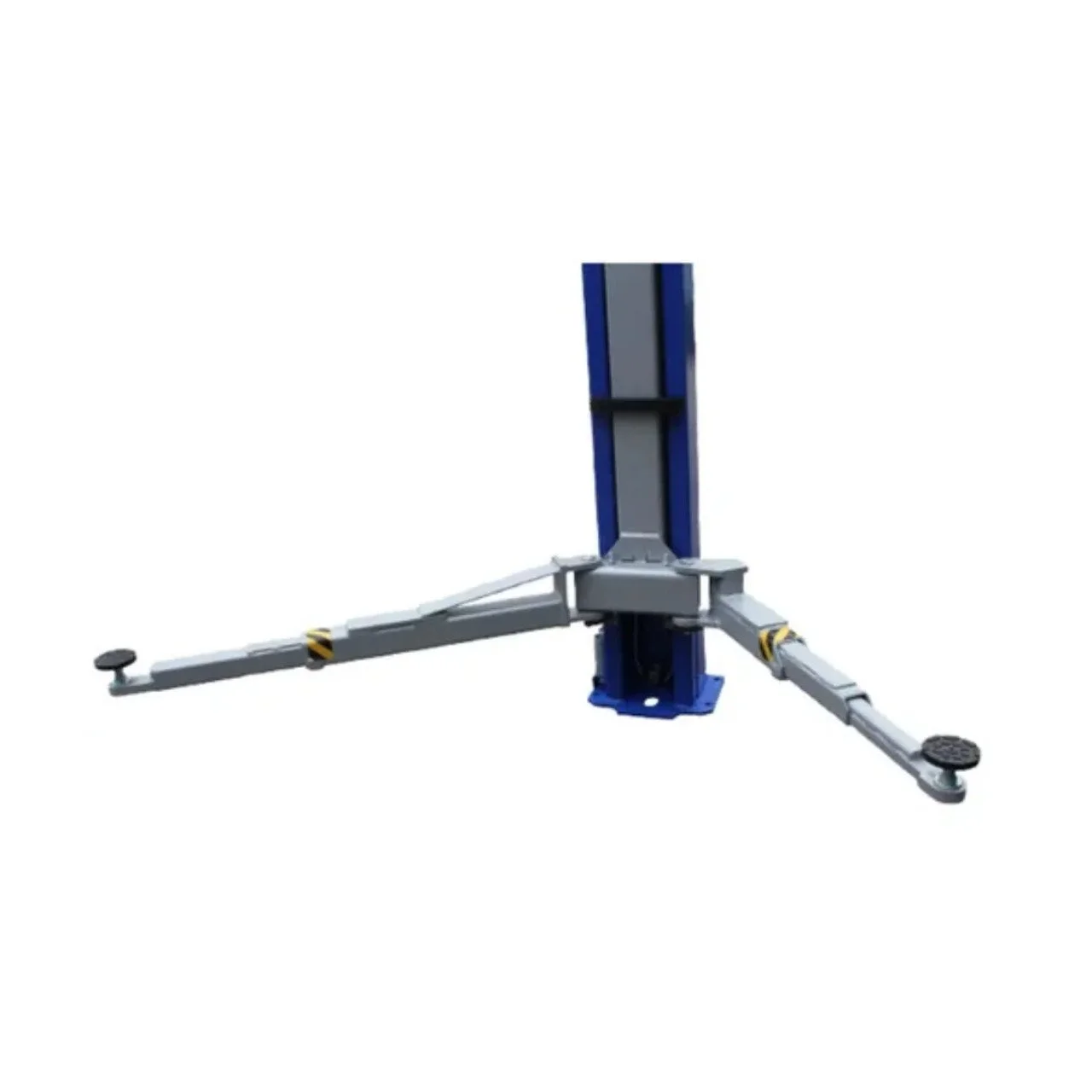

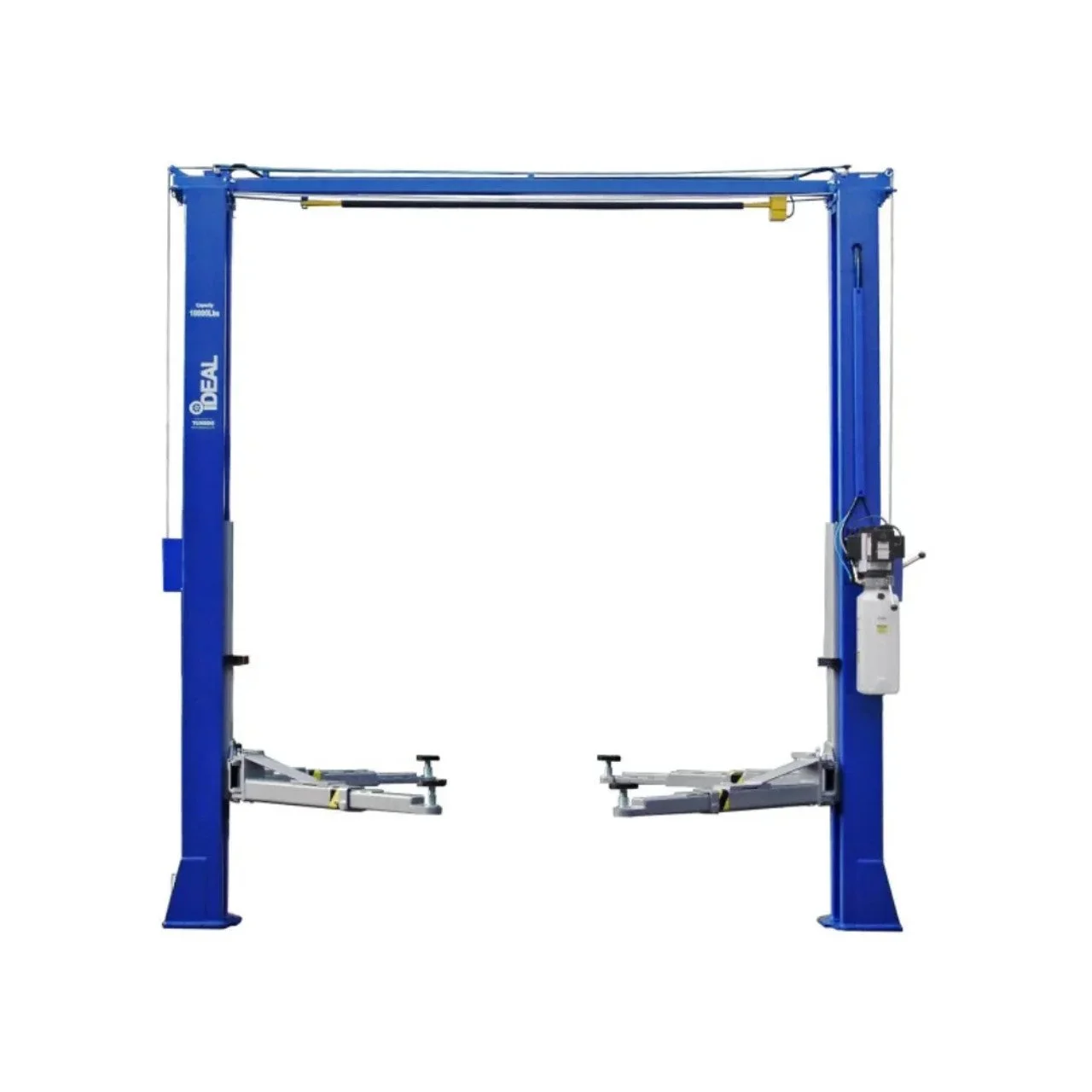

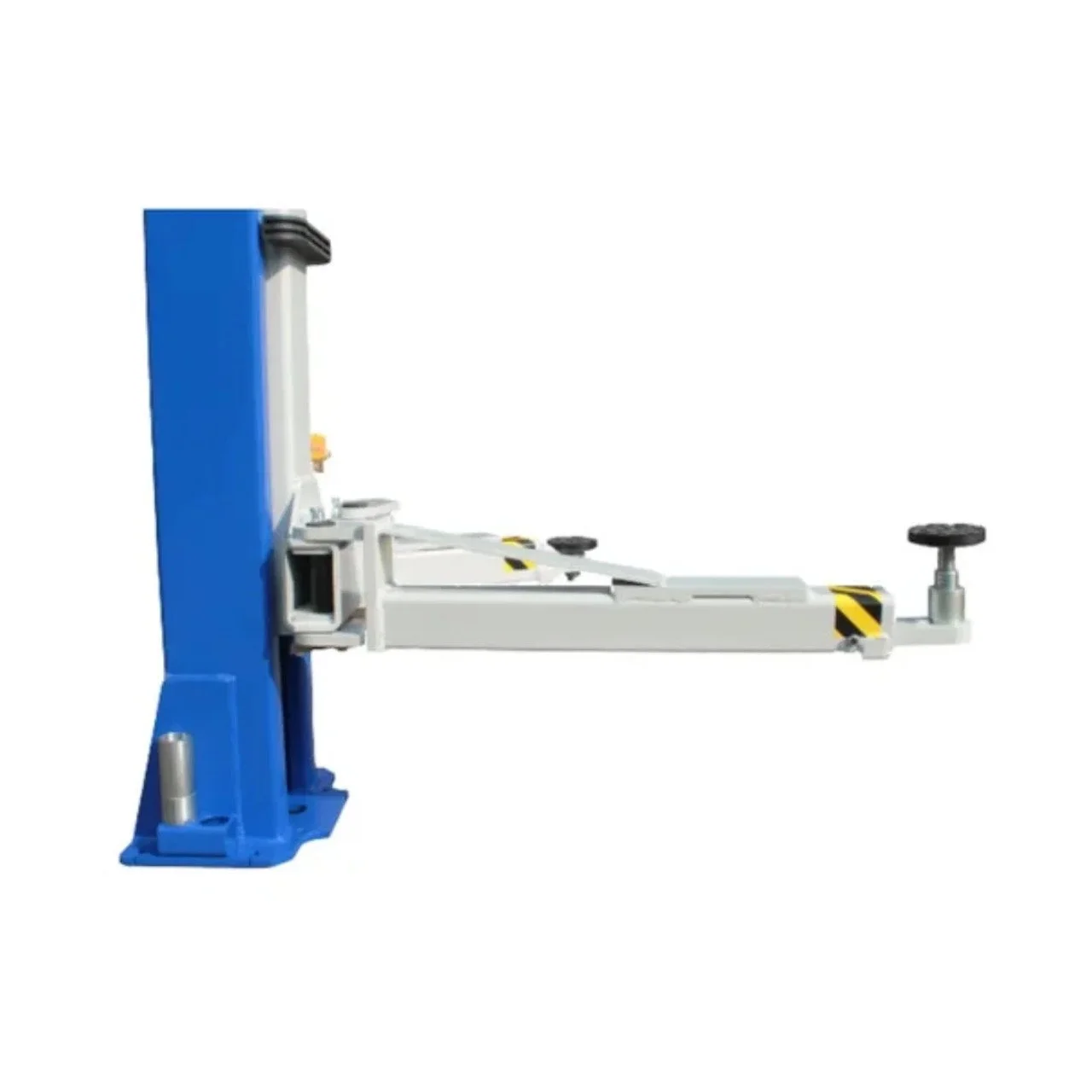

Get your 10000 lb 2 post lift for light duty vehicles with an ALI certification. This lift, with a Bi-symmetric design, features a unique design with 3 front 3-stage arms and 180 degree rotation. Allows a single point lock release, combining direct drive cylinders, makes this lift the perfect choice for workshops or garages, if you want to take this lift, buy now and receive it where you want, remember that we are the best mechanic tools store.
| Lift Model | TP10KAC-DX |
| Capacity | 10,000 lbs. |
| Height Overall | 144″ |
| Width Overall w/ Power Unit | 145-1/2″ |
| Max Lift Height | 71″ |
| Width Between Columns | 116″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 104″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Bi-Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23″-45″ |
| Long Arm Reach – min/max | 41″-59″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,500 lbs |
| Ship Weight | 1,705 lbs |
| Power | 220V – 20 AMP – 1 PH |
